Mirror-polished Stainless Steel Ribbon Panel

For high-quality mirror-polished stainless steel panels, the requirements include a flawless reflection. This requirement is true regardless of the shape and size of the product, and Kikukawa has the capabilities to answer to this request.

The following pictures show the stainless steel border panels at the staircase of The Ginza Cosmetics Ginza, a skincare brand store that opened in Ginza in November of 2018. (The Ginza is offered by a group company of Shiseido.)
The panels are double-curved, running upwards along the staircase. Regardless of this complex shape, Kikukawa’s mirror-polished stainless steel panels are high in quality.

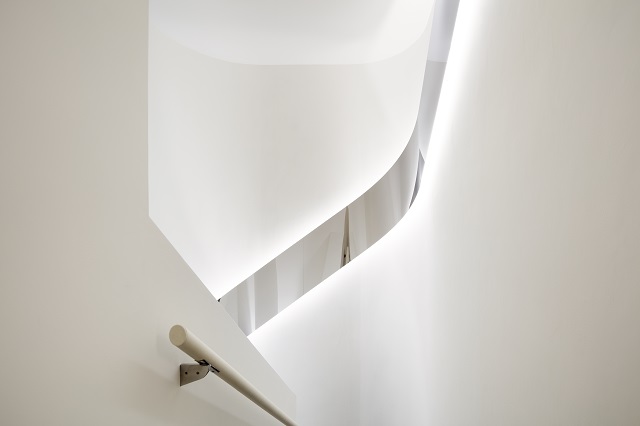

Mirror-polished stainless steel panel that curves upwards

Mirror-polished stainless steel panels that curve upwards

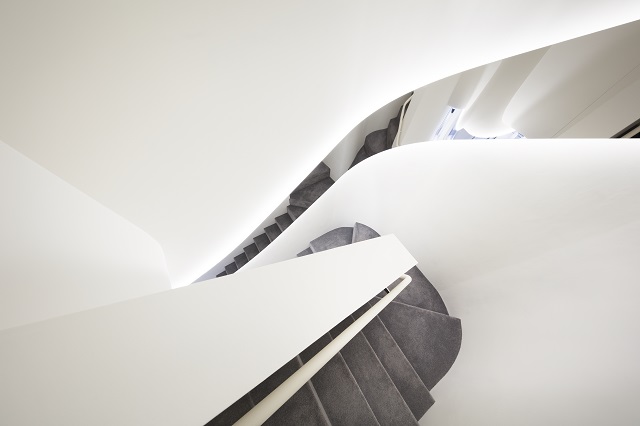

The mirror-polished ribbon panels seen from the second floor

The mirror-polished ribbon panels seen from the second floor

The mirror-polished ribbon panels are roughly 420mm high, with cut-panel details. The 3mm edges were polished carefully as well. Each floor consists of 3~4 butt-joint panels, each panel installed next to another. The joints are hard to distinguish due to the precision of the installation works.

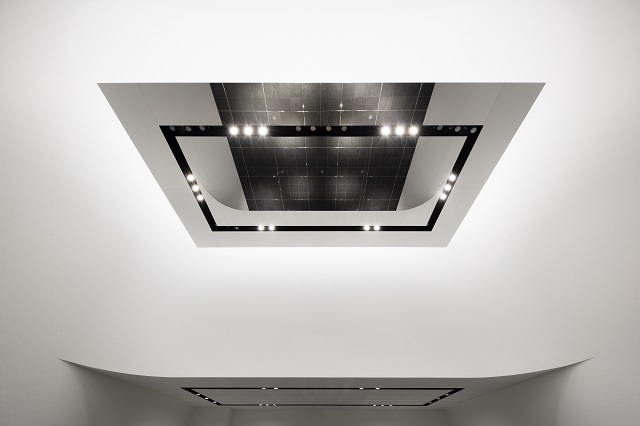

The mirror polished ceiling panels

The mirror polished ceiling panels

For the event space in B2 floor of The Ginza Cosmetics Ginza, Kikukawa also fabricated the mirror-polished ceiling panels. The 3068mm by 5441mm ceiling panels with 3.0mm cut panel details are honeycombed at the back to ensure flatness. The three central mirror-polished panels, 1381mm by 1768mm are also butt-joint.

Quality inspection of the double-curved mirror-polished stainless steel panels

Quality inspection of the double-curved mirror-polished stainless steel panels

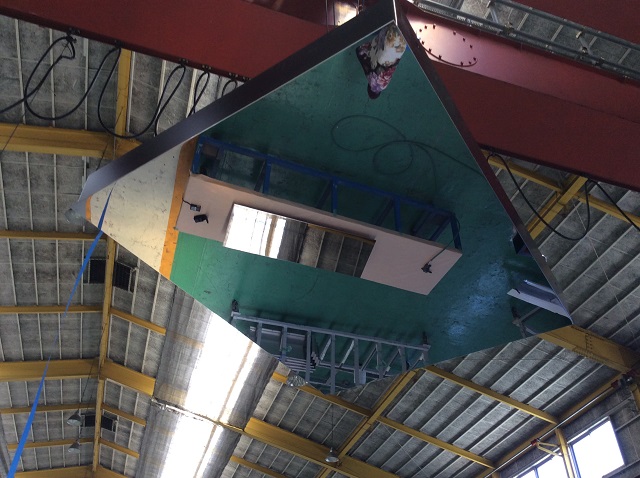

Checking the reflections of the mirror-polished stainless steel ceiling panel

Checking the reflections of the mirror-polished stainless steel ceiling panel

Kikukawa has the QC know-how to ensure the high-quality of our mirror-polished stainless steel panels. This is true for flat panels as well as those with complex designs.

To find out more about Kikukawa’s contributions to the Shiseido brand, SHISEIDO THE STORE, click here
