Kokugakuin University, Academic Media Center (AMC)

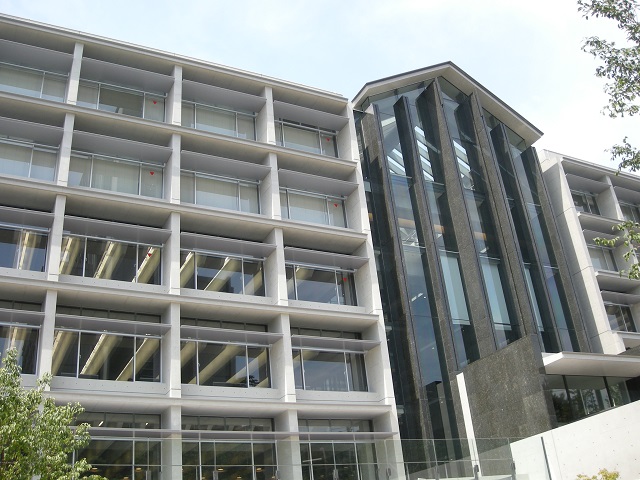

Zinc phosphate coated eaves, walls and columns

Zinc phosphate coated eaves, walls and columns

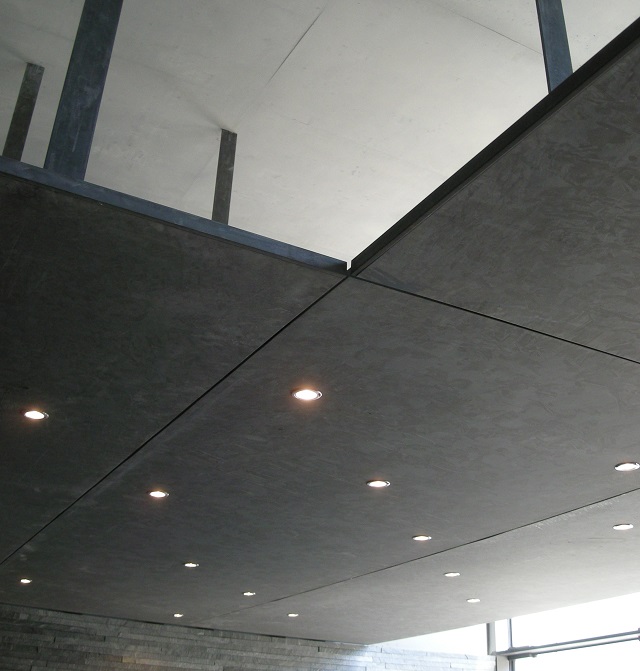

Zinc phosphate coated suspended ceiling panels

Aluminium roofs and toplight frames at the central open ceiling space

Building Function
Material
Metal Finishes

One of Kikukawa’s earliest projects with zinc phosphate coating finish. The 1600mm by 4850mm eave consists of joints covered with 19mm thick flat-bars of 250mm(W), 3.2mm thick roof and soffits both made from a single panel.

Zinc phosphate coating utilizes the natural crystalline aesthetics occurring from a chemical reaction. Thus the process of colouring the panels are an art as much as it is science.

Within this project, there are panels with varying material thickness. Regardless, Kikukawa was able to fabricate and install panels with a level of consistency.

Product Material Metal Finishes
or
Metalwork
B1 Lounge Entrance
Eaves, Ceiling Panels
Steel Zinc Phosphate Coating
Central Roofs
Panels, Top Light Frames
Aluminium Fluroresin Baking Coating
ProjectKokugakuin University, Academic Media Center (AMC)
ClientKokugakuin University
ArchitectNikken Sekkei Ltd.
ContractorKajima-Taisei Corporation Construction Joint Venture
Completion2008
LocationShibuya-ku, Tokyo
